NVidia OpenGL Driver Error code: 7 — A TDR has been detected
Reminder: If you encounter any issues with Enscape (including installation problems) or your subscription please reach out to our dedicated support team directly through the Help Center or by using the Feedback button as detailed here. Thank you for your understanding.
Reactions Received 2 Posts 14 Member since May 10th 2017 Location Heerhugowaard Website http://www.koppesbouwkunde.nl
When exporting a screenshot, Enscape throws this error and shuts down Revit. Enscape version 2.3.0.83-g01dda85. Revit version 2017.2.3. Graphics card NVidia Quadro K1200 driver version 385.69 (Autodesk certified). Ideas how to solve this?
Rendering Engineer
Reactions Received 246 Posts 442 Member since Jan 5th 2018 Location Germany Website http://enscape3d.com
Koppes Bouwkunde did it happen while exporting 4k screenshot? Please send us a feedback using the corresponding Enscape toolbar button so we could have a closer look at your logs.
If you have any issues, don’t hesitate to send in feedback via the Enscape Feedback Button.
Posts 1 Member since May 24th 2017
We are getting the exact same error message with one of our users. Have you found a resolution yet?
Reactions Received 423 Posts 1,284 Member since Mar 7th 2017 Location Karlsruhe, Germany Revit Version 2018 SketchUp Version Pro 2018 Rhino Version 6.0 ArchiCAD Version 22 Website http://www.enscape3d.com/
A TDR is a Timeout Detection and Recovery. So it usually occurs on too weak graphics while trying to export a too high resolution.
=>That’s the reason why we show a warning in the Capture tab at the resolution setting.
But it could as well be caused by a too big and complex project so that a weak GPU takes too long to calculate.
In which resolution do you want to render the image?
Please send in feedback via the [Feedback] button so that we can see what happened.
If you have any issues, don’t hesitate to send in feedback via the Enscape Feedback Button.
A TDR has been detected — NVIDIA OpenGL Driver Error [SOLVED]

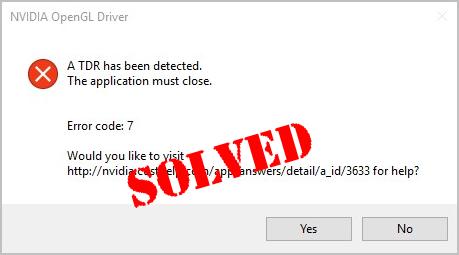

When you try to open a program such as Adobe Illustrator or your game application, it fails, you see the A TDR has been detected error which shown like the image above instead. That could be super frustrating. But don’t panic. We’ve put together two helpful methods for you to try. Read on and find how…
Try these fixes:
- Update your NVIDIA graphics driver
- Change the timeout of NVIDIA graphics card
What you might concern…
If you’re curious about what TDR is in the error ‘A TDR has been detected’, here’s the answer:
Your Windows operating system attempts to detect situations in which your computer appears to be completely frozen and then attempts to dynamically recover from the frozen situations so that your desktop is able to respond again. This process of detection and recovery is so-called TDR (Timeout Detection and Recovery).
When you’re seeing the error saying “A TDR has been detected”, probably the TDR timeout was exceeded. Try the methods below…
Method 1: Update your NVIDIA graphics driver
This error could be caused by a bug related to your graphics card. NVIDIA keeps updating drivers and when it receives bugs usually there would be a fix in the future driver update. When you’re having the ‘A TDR has been detected’ error, we recommend updating your NVIDIA graphics card driver to the latest version.
Whether you choose to update the device drivers manually, using Windows Update, or you use a trusted third party product, it’s essential that you have the latest correct device drivers for your operating system at all times. If you’re not comfortable playing with device drivers, we recommend using Driver Easy .
Driver Easy will automatically recognize your system and find the correct drivers for it. You don’t need to know exactly what system your computer is running, you don’t need to risk downloading and installing the wrong driver, and you don’t need to worry about making a mistake when installing.
Here’s how you can do it:
1) Download and install Driver Easy.
2) Run Driver Easy and click the Scan Now button. Driver Easy will then scan your computer and detect any problem drivers.
3) Click Update All to automatically download and install the correct version of all the drivers that are missing or out of date on your system. (This requires the Pro version which comes with full support and a 30-day money-back guarantee . You’ll be prompted to upgrade when you click Update All.) Note: You can also do it for free if you like, but it’s partly manual.
Once you update your graphics card driver, try to open your game application or Illustration to see if the error disappears.
Method 2: Change the timeout of your NVIDIA graphics card
Another method to fix the ‘A TDR has been detected’ error is to increase the timeout of your graphics device.
See how to do it:
1) Exit all the running apps and programs on your Windows system.

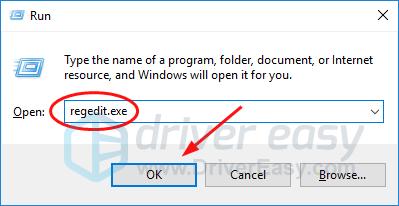

2) On your keyboard, hold down the Windows logo key then press R to bring up the Run box.
3) Type regedit.exe and click OK .
4) Click Yes when prompted by User Account Control.
5) Go to the following registry keys:
HKEY_LOCAL_MACHINE > SYSTEM > CurrentControlSet > Control > GraphicsDrivers

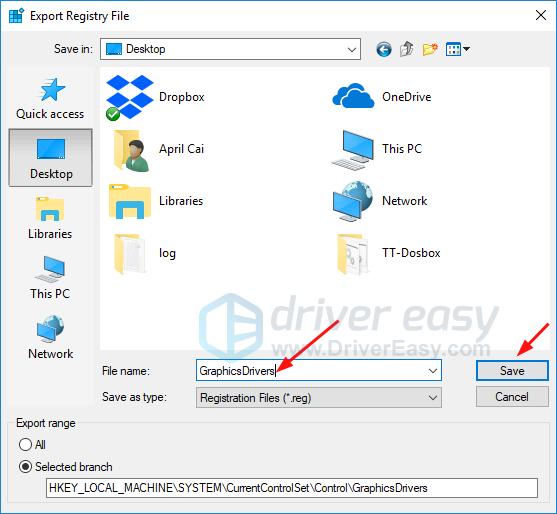

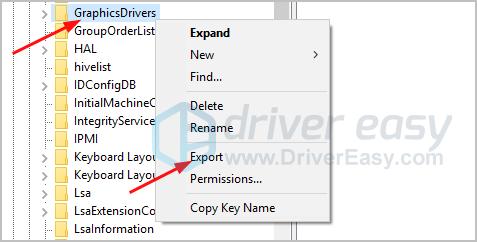

6) Right-click on GraphicsDrivers to select Export. (It’s to back up the GraphicsDrivers registry key in case any wrong happen during our next change to it.)
7) Proceed to select a backup folder and name the backup file.

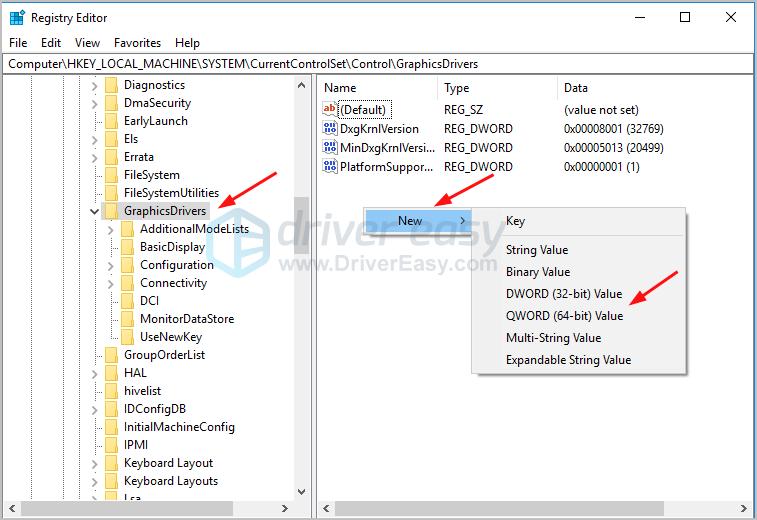

8) Once you complete to backup, back to the Registry Editor window, click GraphicsDrivers , then right-click on the Edit pane of GraphicsDrivers to select New.
If your Windows system type is 64-bit based, click QWORD (64-bit) Value.
If your Windows system type is 32-bit based, click DWORD (32-bit) Value.

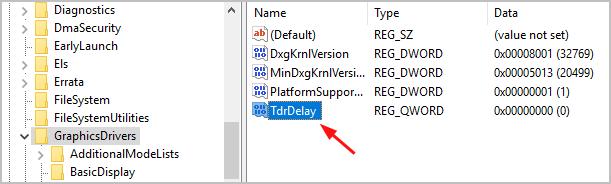

9) Set the name to TdrDelay and press Enter .

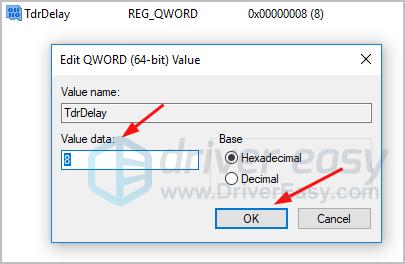

10) Double-click TdrDelay . Then set its Value data to 8 and click OK .
Once you do, close the Registry Editor window, then try to open your game application or Illustration to see if the error disappears.
Hopefully, this article helps you. Feel free to comment below with your own experiences and share it with your friends if they’re having the same problem.
A tdr has been detected the application must close error code 7
2015년 5월 30일 오후 1시 24분
A TDR has been Detected? ♥♥♥♥♥
okay I have never in my life seen this message pop up and it’s kinda getting annoying.
When playing wolfenstein the old blood It will crash sometimes with this message from Nvidia openGL.driver. stating » A TDR has been detected error code 7″
All I know is it has something to do with the GPU going over its limits or something like that??
Specs.
CPU: intel i5-4670k 4.5GHZ
GPU: EVGA GTX 970 FTW+
RAM: 8GB DDR3 2133 G.Skill sniper
8 개 댓글 중 1 — 8 개 표시
2015년 5월 30일 오후 1시 28분
got the same error, auto fixed itself 😀
2015년 5월 30일 오후 1시 29분
Sohamura님이 먼저 게시:
got the same error, auto fixed itself 😀
I haven’t been that lucky yet :\ done it twice now.
2015년 5월 30일 오후 1시 42분
try in the games subforum
2015년 5월 30일 오후 1시 47분
TDR = Timeout Detection and Recovery, something Windows uses on the graphics card, to try detect if it’s hanged and failed to send input to the monitor for a while. Windows then attempts to fix it but restarting the graphic card drivers.
Error code 7 = Lost connection signal.
Either the graphic card is overheating / overworked. The game itself has hanged/glitched and stopped sending information to the monitor. Or you have an issue with it’s graphic card drivers stability.
Download the latest Nvidia drivers from there and perform a full express / clean installation. Ensure Microsoft Windows hasn’t used it’s own drivers, a corrupted driver file or anything like that.
What resolution / quality are you attempting to run at? Turn it down slightly (such as the anti aliasing and/or other high graphic processing — Nvidia Hairworks, etc) and retest, does the issue still occur or not?
OpenGL “TDR detected” Meaning
If you received this message from an application (in the Event Log or on a pop up message), the application was unable to continue rendering because the Microsoft Windows imposed time limit (TDR) was exceeded. This is normally the case when the workload sent to the graphics card is greater than what the graphics card can process in the normal alloted time of two seconds.
You can find more information on this page:
How can this be fixed?
Two possible solutions to try would be:
1. Reduce the graphics workload if possible, such as by rendering to a lower resolution or by reducing the detail.
2. Increase the timeout value to allow more time to complete more intensive rendering. Microsoft provides information on how to modify the Windows Registry to achieve this.
